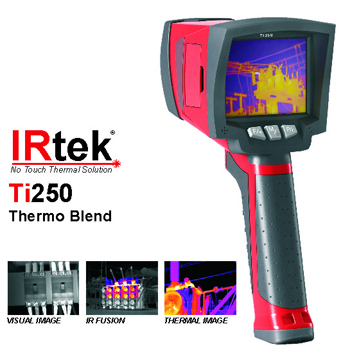

TI 250
FEATURES
• Auto Focus
• 2.0 Megapixel CMOS
• Large Storage Capacity
• Rugged and Ergonomical Design
• Friendly Interaface fo Convenient Use
• IR Fusion Technology
• Flexible Battery Compatibility
• Low Cost
• High Performance
Thermal |
|
| Detector Type | Microblometer UFPA (160 x 120 pixels, 25µm |
| Spectral Range | 8 ~ 14µm |
| Field of View | 20.6º x 15.5º |
| Focus | 11mm |
| Thermal Sensitivity | ≤0.1°C at 30°C (≤0.18°F at 86°F) |
| Image Frequency | 50Hz PAL / 60Hz NTSC, non-interfaced |
| Image Display | 256 level, 8 palettes |
Visual |
|
| Bulit-in Digital Video | CMOS Sensor, 1600x1200 pixels, 224 colors |
| External Display | 3.6" TFT high resolution color LCD |
Measurement |
|
| Temperature Range | -20 ~ 250°C, optional up to 350°C (-4 ~ 482°F, optional up to 662°F) |
| Accuracy | ±2ºC(±3.6°F) or ±2% of reading |
| Measurement Modes | Spot analysis, IR fusion |
Image Storage |
|
| Type | 2G SD Card |
| File Format | standard JPEG |
| Voice Annotation | 60 seconds |
System Status Indication |
|
LCD Display |
Low battery indication, power indication |
Power Supply |
|
| Type | 110/220V AC adaptor, AA alkaline battery, AA rechargeable battery |
Operating Time |
More than 2 hours for continous operation |
| Charging System | In camera or in battery charger |
Environmental |
|
| Operating Temperature | 0 ~ 50°C (32 ~ 122°F) |
| Storage Temperature | -20 ~ 60°C (-4 ~ 140°F) |
| Humidity | Operating and stroing 10% to 95%, non condensing |
| Encapsulation | IP54 |
| Shock | Operational 25g, IEC 68-2-29 |
| Vibration | Operational 2g, IEC 68-2-6 |
| Drop Test | 2 meters |
Interfaces |
|
| USB 2.0 | Real time image (thermal and visual), measurement, and voice transfer to PC |
| Laser Locator | Semiconductor A1 GalnP Diode Laser |
Physical Characteristic |
|
| Dimensions | 111 x 124 x 240mm |
| Weight | 0.73kg (including battery) |
Accessories |
|
| Standard | Rechargeable batteries, battery charger, USB 2.0 cable, instruction manual, warranty card, certificate of product conformance |
| Optional | Telephoto lens (30mm, FOV 7.6° x 5.7°), wide angel lens (7mm, FOV 32° x 24° sun shield) |
